NanoRF VITA 67.3 Connector System

Picture for category NanoRF VITA 67.3 Connector System

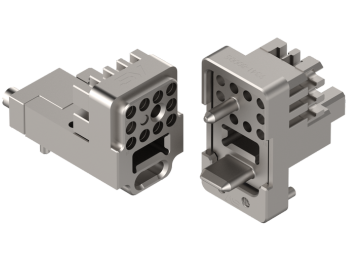

SV Microwave, a longstanding participant in the VITA community and active member of the electro-mechanical and hardware working groups, is now officially licensed to offer NanoRF modules and contacts. This addition to our VITA modular interconnect system underscores our commitment to staying at the forefront of VITA technologies. With the NanoRF series joining our VITA 67.3 SMPM and SMPS offerings, SV Microwave delivers high-density, high-performance connectors engineered to meet embedded systems' rigorous demands, offering robust and reliable connectivity for high-frequency applications. Integrating NanoRF modules enhances SV Microwave's capability to support embedded system designs requiring advanced modular connectivity solutions compliant with both VITA and SOSA standards.

Features / Benefits:

  • High-density connectors provide up to 20 RF contacts at once
  • Drop-in replacement for existing industry hardware
  • Specified to the latest VITA 67.3 and VITA 66.5 standards
  • Adheres to SOSA standards
  • VITA 65.1 Apertures 6.4.5.6.10, 6.4.5.7.2, and 6.4.5.7.4
  • DC up to 70 GHz

Applications:

  • Robust and rugged high-speed cabled solution
  • Mil-Aero
  • SIGINT, EWR, ground base station & communication systems, avionics, radar systems
  • Embedded Systems
  • Unmanned Systems like UAVs and UGVs

VITA NANORF



 Impedance (Ω)  50
 Frequency GHz  67 GHz
 Shielding Effectiveness

≥ -140 dB, 3 MHz to 30 MHz

≥ -120 dB, 30 MHz to 3.0 GHz

≥ -100 dB, 3.0 GHz to 30 GHz

≥ -90 dB, 30 to 67.0 GHz

 Dielectric withstanding Voltage  250 VRMS
 Mating Cycles  500
 Insertion Force  2.5 lbs (per contact)
 Withdrawal Force  0.315 lbs
 Temperature Rating -55°C to +125°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
per page
Part #   8341-40001

NanoRF Female VITA 67.3 Backplane Contact for .047 Cable

Available Inventory: 250
VITA Connectors 8341-40001
Datasheet
Part #   8341-40002

NanoRF Female VITA 67.3 Backplane Contact for .086 Cable

Available Inventory: 150
VITA Connectors 8341-40002
Datasheet
VITA Cable Assemblies
Datasheet
VITA Cable Assemblies
Datasheet
Part #   8351-40001

NanoRF Male VITA 67.3 Plug-In Contact for .047 Cable

Available Inventory: 299
VITA Connectors 8351-40001
Datasheet
VITA Cable Assemblies
Datasheet
VITA Connectors 9341-80005
Datasheet
Part #   9351-80004

NanoRF VITA 67.3 10 Port RF and 1 Port MT Fiber Plug-In Hybrid Module

Available Inventory: 24
VITA Connectors 9351-80004
Datasheet
VITA Connectors 9341-80006
Datasheet
Part #   9341-80007

NanoRF VITA 67.3 9 Port Backplane Module

Available Inventory: 18
VITA Connectors 9341-80006
Datasheet
Part #   9351-80005

NanoRF VITA 67.3 9 Port Plug-In Module

Available Inventory: 15
VITA Connectors 9351-80005
Datasheet
